Description

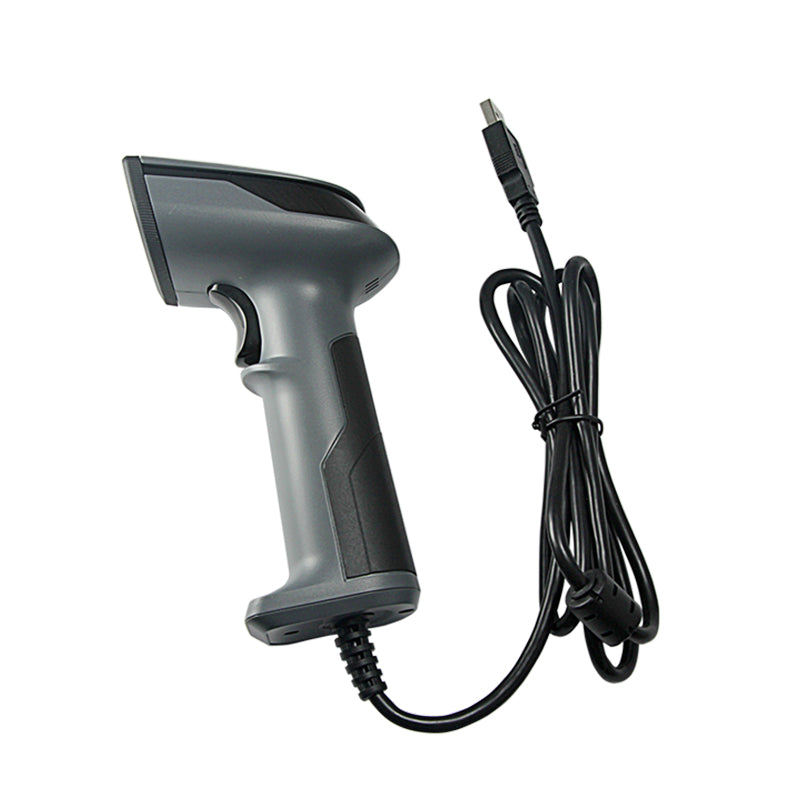

The Sunlux XL3620S Handheld 2D scanner offers a sleek and modern design, providing a stylish new look and feel. This scanner is designed to be portable and easy to use, making it a convenient tool for various scanning needs. With its 2D scanning capabilities, it can efficiently capture and decode barcodes, making it suitable for retail, logistics, and other industries.
This handheld scanner is equipped with advanced technology that ensures accurate and fast scanning performance. It can read both printed and digital barcodes, including QR codes, making it versatile for different applications. The Sunlux XL3620S is designed to be ergonomic, allowing for comfortable and prolonged use without causing strain or fatigue.
Supplied with counter top stand, USB and serial cable.
- Fast reading on all 1D/2D barcode on paper and screen
- 0.3 million camera, fast reading speed 60fps/s
- Light industrial design, unique appearance, fashionable shape
- Compatible with Windows 7/8/10, iOS, Android, Linux system
- Plug and play, no need to install drivers, support firmware upgrade
- Suitable for retail stores, supermarkets, restaurant, pharmacy, assembly line
| Image Sensor | CMOS | |||
| Light Levels | White LED (Lighting) RED aiming light | |||
| CPU | 32bit ARM | |||
| IP Standard | IP 54 | |||
| Image Sensor | 640x480 pixels | |||
| Scanning Speed | 60fps | |||
| Decoding Depth | 60~360mm (13mil PCS90%) | |||
| Minimum Resolution | 3mil | |||
| Motion Tolerance | 13cm / second,(Skew/Pitch) +/- 65° | |||
| Interface | USB-HID, USB-VCP, RS232 | |||
| Scan Mode | Manual & Automatic | |||
| Materials | ABS+TPU | |||
| Size | L*W*H : 147.7*90.6*62.8(mm) | |||
| Weight | 185g | |||
| Input Voltage | DC 3.6V ~ 5.5V | |||
| Working Current | 142mA | |||
| Stand-by Current | 42mA | |||
| Temperature(Operating) | -10°C ~ 50°C | |||
| Temperature(Storage) | -20°C ~ 60°C | |||
| Indicate | LED Indicator and Buzzer | |||
| Cable Standard | 1.5 Meters | |||
| Humidity | 5% ~ 95%(non-condensing) | |||
| Light Source | 0 ~ 5000Lux(fluorescent light),0 ~ 100,000Lux(daylight) | |||
| Decoding Capability |
1D: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5, Code93, Code128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar, RSS14, GS1 DataBar Limited, GS1 DataBar Expanded, etc. 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code |
|||
