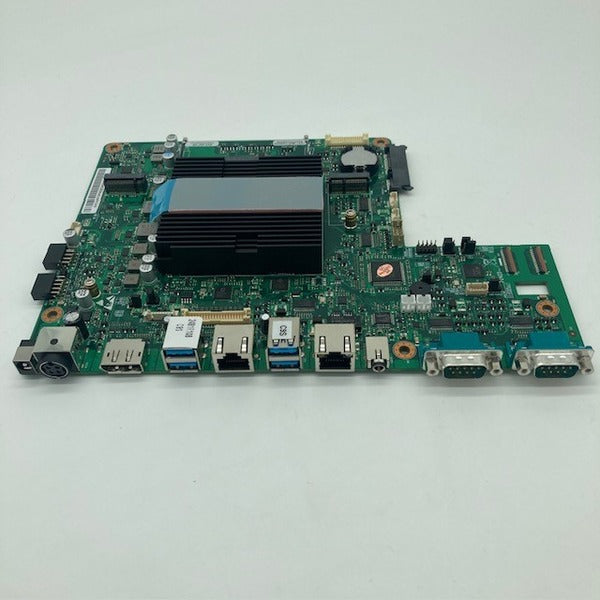

Replacement Main PCB for the Sam4s Sapphire SAPH 660 (15") POS terminal

CPU : Intel Alder Lane N97 2.00GHz(up to 2.60GHz) Without FAN

I/O Interfaces:

COM(Serial) Port : D-SUB 9P x 2Ports / RJ-45 x 1Port
5V / 12V or RI outputs through COM 1, 2, 3(BIOS setup)
USB 3.0 IO x 4Ports
Ethernet Port : 10M / 100M / 1Gb LAN RJ-45 x 1Port
DP Port : 1Port
Audio Port : Line-out x 1Port
DC-OUTPUT Port : 12V DC-OUT 2.5 x 1Port

DDR RAM supplied separately

Please remove the protective film on the Blue thermal transfer pad before fitting

Also suitable for the Sam4s Sapphire SAPH 670 (15.6") POS terminal
