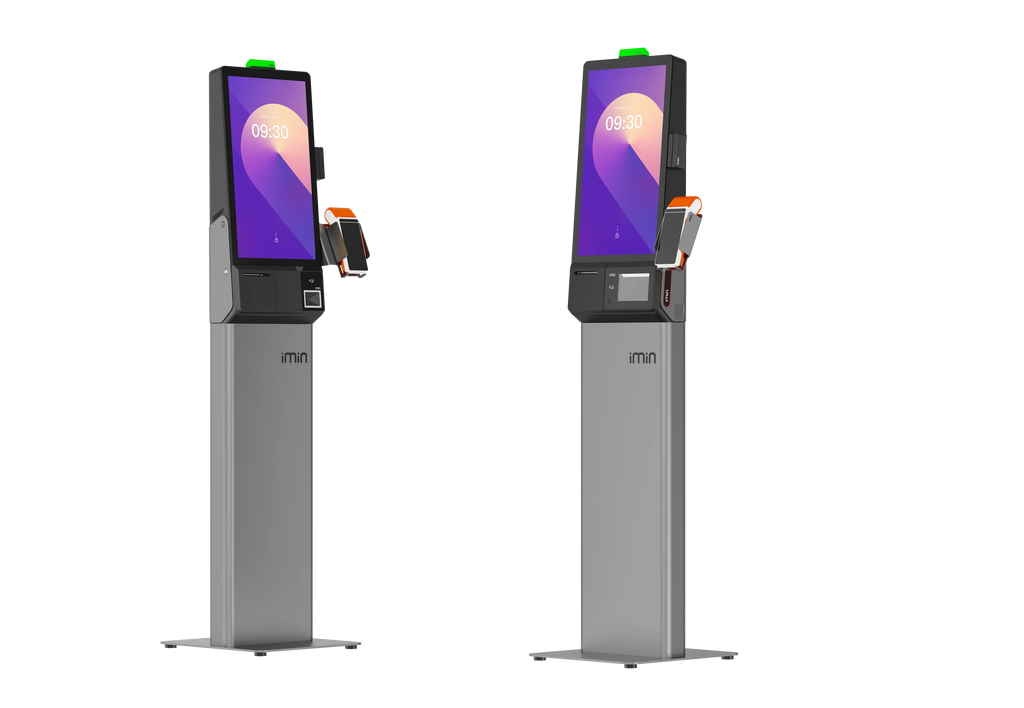

iMin Heron 1 – Floor Stand Specifications

Physical Dimensions

• Floor Stand Size: 410 × 460 × 1700 mm (W × D × H)

• Form Factor: Freestanding kiosk stand

• Construction: Industrial metal frame designed for public environments

• Mount Type: Floor-standing with integrated device mounting bracket

Display

• Screen Size: 23.8″ Full HD touchscreen

• Resolution: 1920 × 1080

• Brightness: ~250 nits

• Touch: Capacitive multi-touch

Performance

• Processor: Octa-core (A76 + A55 architecture)

• AI Processing: NPU up to 3 TOPS

• Operating System: Android 15

• Memory: Up to 16 GB RAM

• Storage: Up to 256 GB ROM

Integrated Hardware

• Camera: 2 MP

• Printer: 80 mm thermal printer with auto cutter

• Scanner: 1D / 2D barcode & QR code scanner (optional)

• Payment Support: Optional card reader / payment module

Connectivity

• Wi-Fi

• Ethernet (LAN)

• Bluetooth

• USB ports for peripherals

Environmental Specifications

• Operating Temperature: 0°C – 50°C

• Dust / Water Resistance: Designed for continuous public use

• Body: Industrial-grade metal chassis

Typical Applications

• Self-ordering kiosks in restaurants

• Retail self-checkout

• Ticketing terminals

• Hotel or hospital check-in kiosks

• Digital directory or information kiosk
