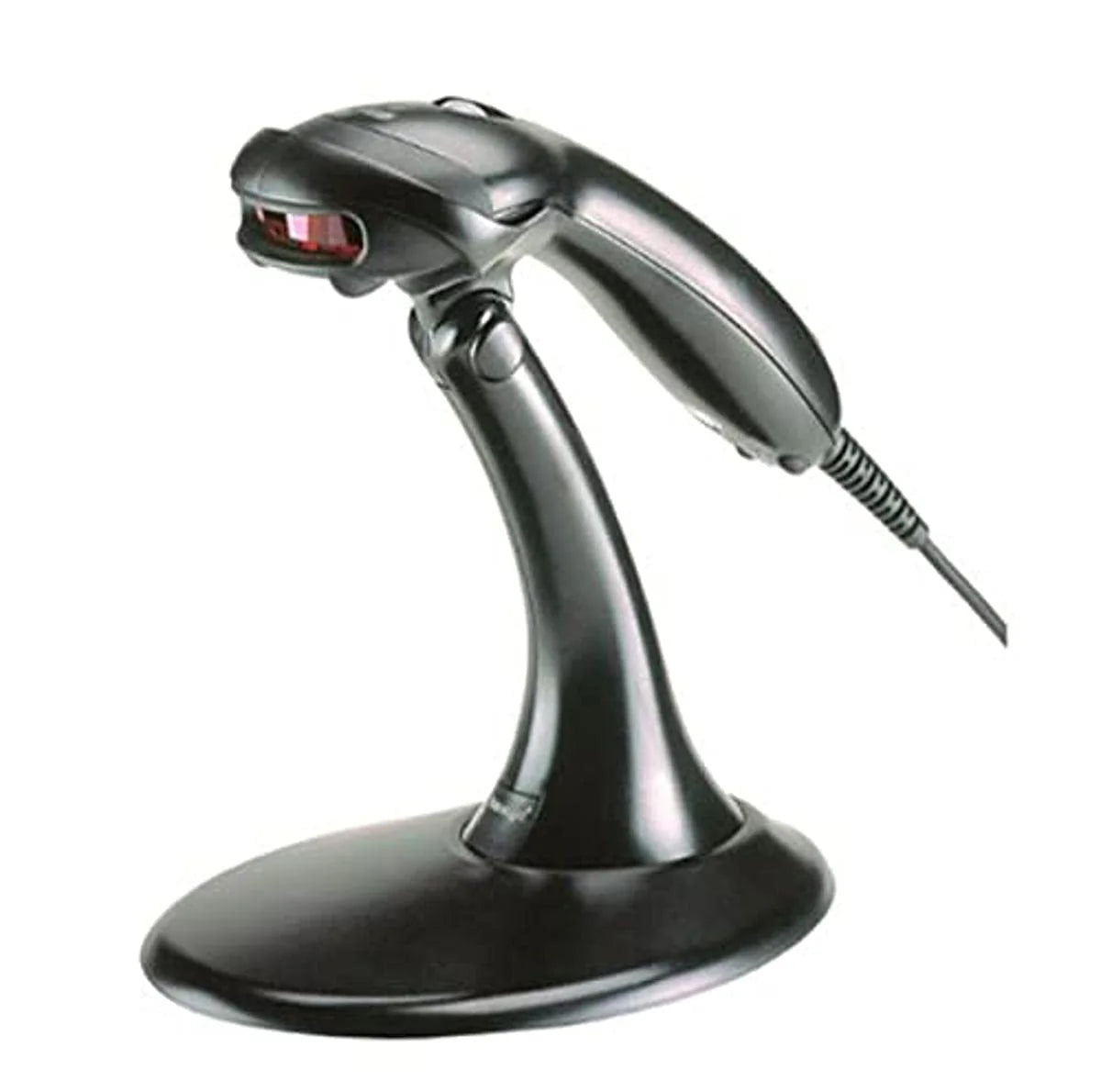

The Honeywell MK9540 VoyagerCG is a handheld single-line laser scanner designed for efficient and accurate barcode scanning across various applications, including retail point-of-sale, document processing, and inventory management.

Key Features:

• CodeGate Technology: Incorporates Honeywell's patented CodeGate technology, allowing users to easily target the desired barcode and transmit the data with a simple button press, enhancing accuracy in menu scanning and similar applications.



• Automatic Trigger: Equipped with an infrared (IR) sensor that activates the laser automatically when a barcode is presented, facilitating seamless scanning in both handheld and hands-free modes.



• Ergonomic Design: Features a lightweight and ergonomic form factor, reducing user fatigue during prolonged use.



Technical Specifications:

• Dimensions: 198 mm (L) x 78 mm (W) x 56 mm (H)



• Weight: 149 grams



• Scan Speed: 72 scans per second



• Light Source: Visible Laser Diode 650 nm ± 10 nm



• Print Contrast: Minimum 35% reflectance difference



• Pitch/Skew Angles: ±60° pitch; ±60° skew



• Decode Capability: Reads standard 1D and GS1 DataBar™ (formerly RSS) barcodes



• Connectivity Interfaces: Supports USB, Keyboard Wedge, RS232, and IBM 46xx (RS485) interfaces



Environmental Specifications:

• Operating Temperature: 0°C to 40°C



• Storage Temperature: -40°C to 60°C



• Humidity: 5% to 95% relative humidity, non-condensing



• Drop Resistance: Designed to withstand drops from 1.5 meters onto concrete



The Honeywell MK9540 VoyagerCG is engineered to deliver reliable and precise barcode scanning, making it a versatile tool for various data capture needs.
